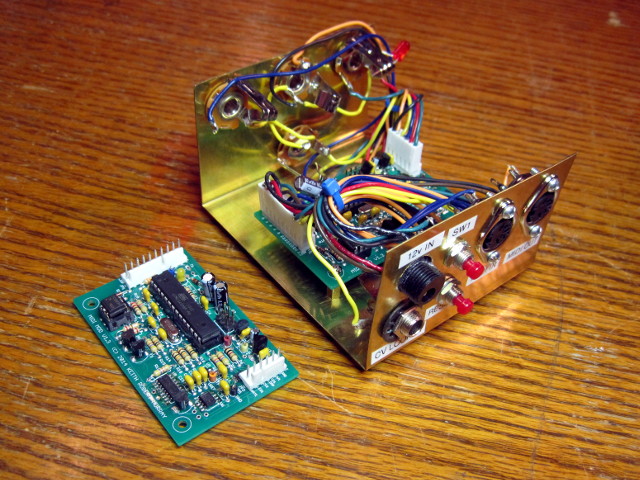

MIDI-CV-Arpeggiator Prototype December 01 2014

MIDI-CV-Arpeggiator Prototype

MIDI-CV-Arpeggiator Prototype
MIDI-CV-Arpeggiator Prototype

MIDI-CV-Arpeggiator Prototype

This is a live demo of my MIDI-CV-Arpeggaitor prototype, demonstrating many of the real time features. It's driving my Paia 9700 modular. I have the aux CV out connected to the filter cutoff on the Paia.

This board is now in full production. See the [KRM-90] MIDI-CV-Arpeggiator retrofit board page for full details.

It also comes as a full Eurorack module, with an LCD screen. [KRM-100] MIDI-CV-Arpeggiator Module

MIDI-CV-Arpeggiator Functions

  • Compatible with 1V/oct, Hz/volt, 1.2V/oct, and 0.32V/oct synths.
  • Arpeggiator sync to MIDI, or free running.
  • Arpeggiator sync to any note value (whole, to 32nd triplets), modifiable in real time via MIDI CC.
  • 8 arpeggaitor patterns: Up, Down, Up-Down, Down-Up, Up-Down-Repeat, Down-Up-Repeat, Random, plus User Programmable (64 steps).
  • LFO, mappable to pitch CV, or aux CV out.
  • LFO sync to MIDI, or free running.
  • LFO sync to any note value (whole, to 32nd triplets), modifiable in real time via MIDI CC.
  • 10 LFO wave shapes: Tri, Saw, Saw Inverted, 10% Pulse, 20% Pulse, 30% Pulse, 40% Pulse, Square, Random, plus 2 Programmable.
  • LFO wave shape can be modified in real time via MIDI CC.
  • 2 portametnto modes: Constant Time, Constant Speed.
  • Aux CV out mappable to velocity, MOD wheel, or any MIDI CC.
  • And more...

MIDI-CV-Arpeggiator Prototype Demo

MIDI-CV-Arpeggiator Prototype Demo
